HIRT offers a comprehensive range of accessories for HIRT-series measuring transducers. The portfolio includes solutions for extending, connecting and integrating measuring transducers. These include, amongst other things, high-quality measuring tips and extensions, various cable and connection solutions for analogue and digital systems, as well as components for flexible applications. The range is complemented by precisely matched system components for secure and stable mounting, as well as additional functional elements to support a variety of measurement tasks.
Measuring inserts for precise and versatile measurement tasks in industrial and quality control applications. Compatible with standard dial gauges and measuring probes, the measuring inserts are available in steel, carbide, ruby, PEEK, and Teflon. Customized designs and suitable extensions enable the measuring inserts to be adapted to specific measurement requirements, geometries, and application conditions.
Tip extensions for measuring inserts with M2.5 threads, designed to extend the measuring range and ensure optimal adaptation to the measuring task.
Fastening elements for secure positioning and precise clamping of measuring transducer of the T series. They ensure reliable operation across a wide range of installation situations.
Extension cables for halfbridge transducers, fully compatible with the TESA T series, available in various lengths for flexible adjustment of the desired connection length.

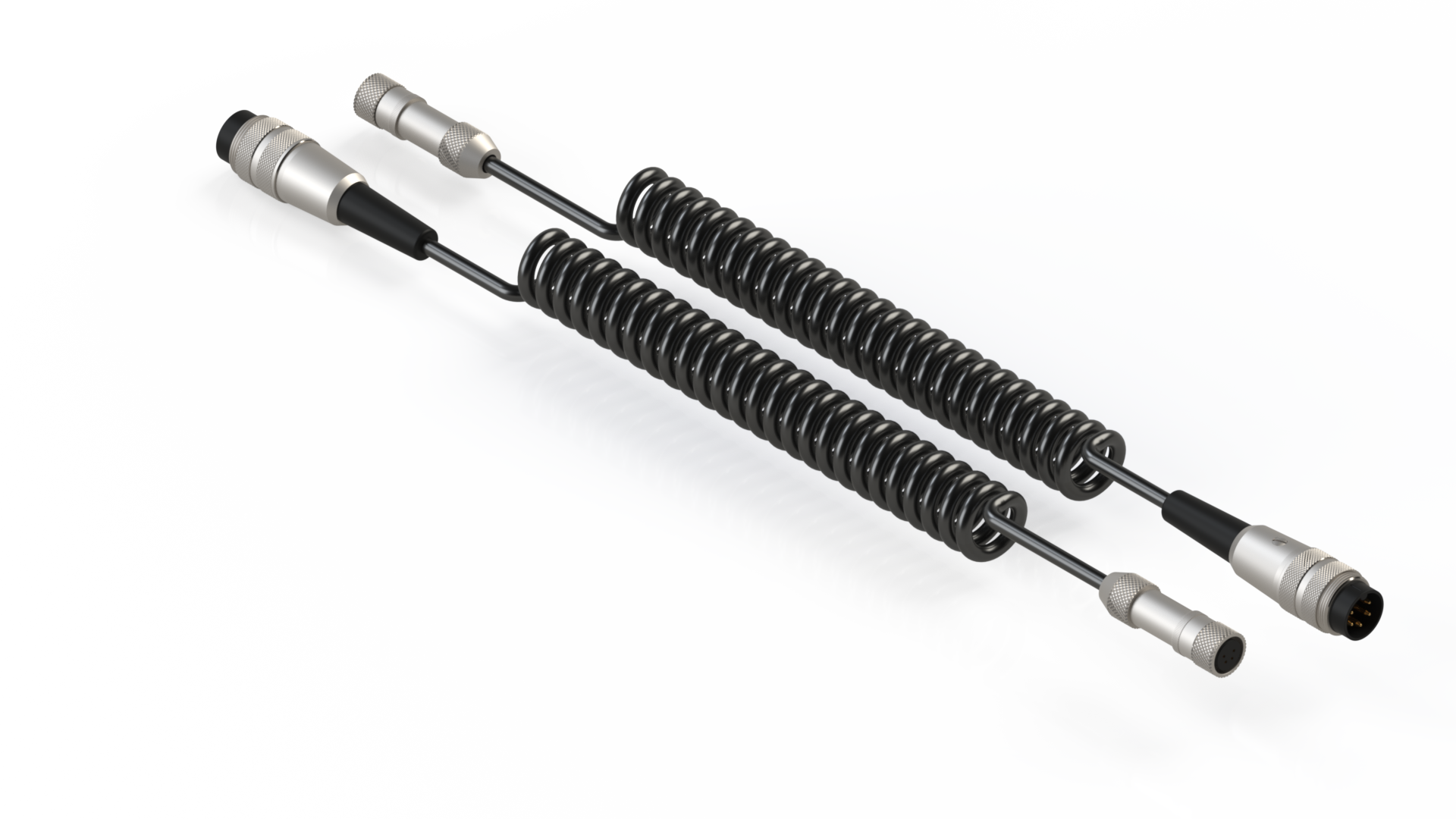

Spiral cable for T series pluggable transducers with axial cable outlet. Shielded PUR Semoflex® spiral cable, suitable for drag chain applications and dynamic loads. Designed for reliable and stable signal transmission in metrological applications.

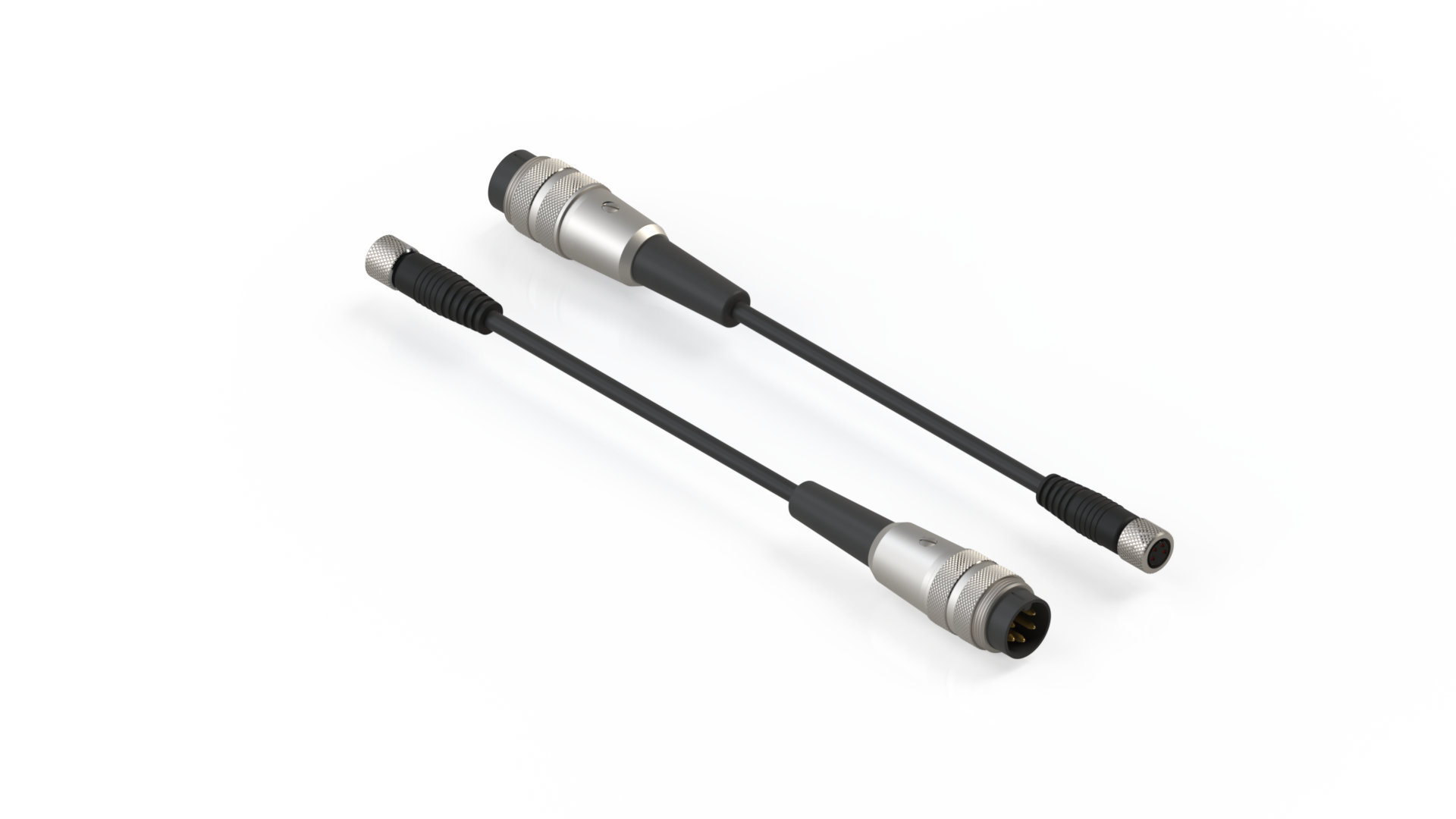

Connection cable for T series pluggable transducers and T Pig-Tail series with axial or radial cable outlet. Available in various lengths, suitable for drag chain applications, and designed for reliable signal transmission in metrological applications.

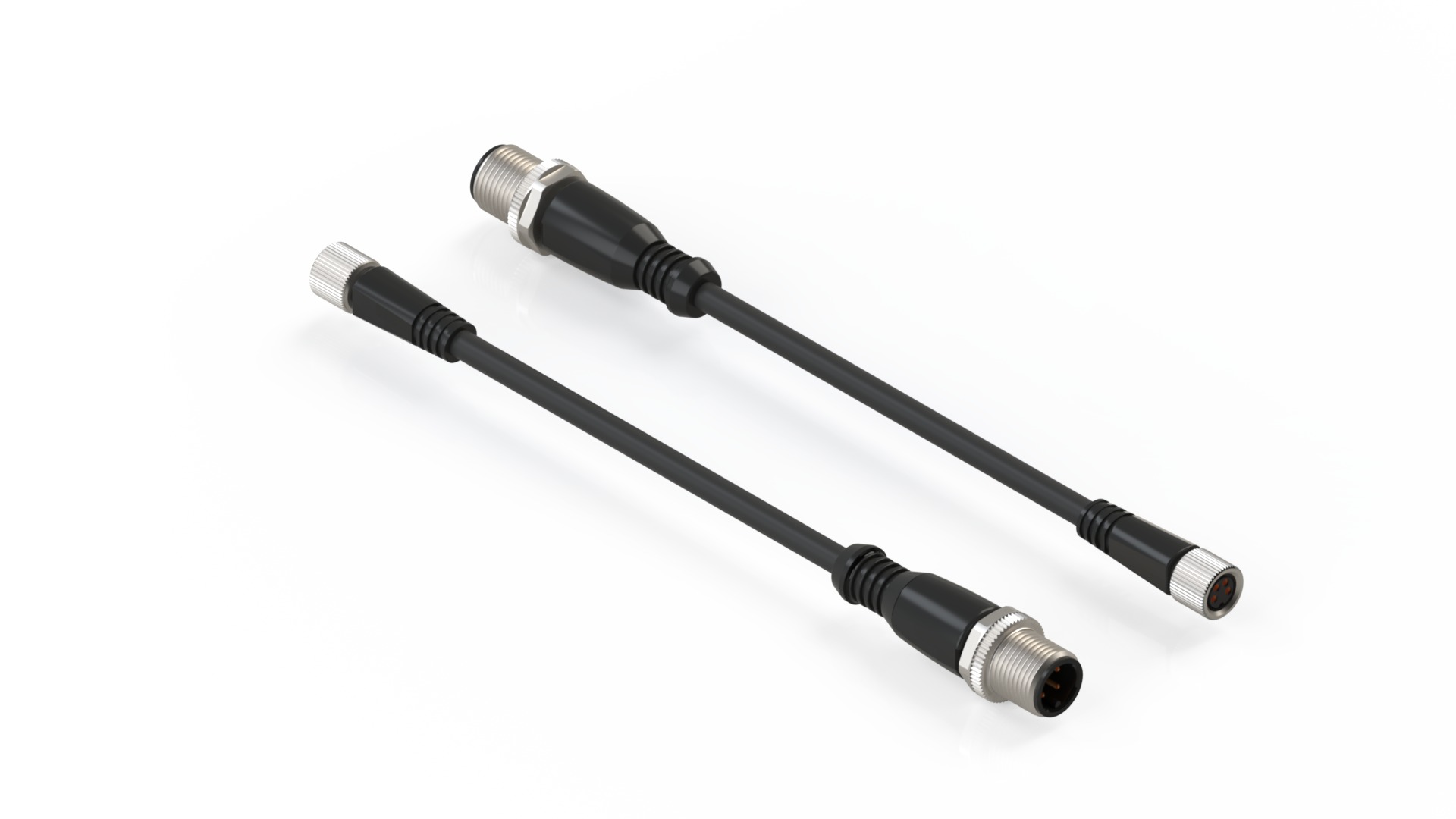

Connection cable for HIRT digital IO-Link transducers with an M8 connector for connection to an IO-Link Master via an M12 connector: PUR cable, suitable for drag-chain applications and equipped with a screw locking mechanism for reliable data transmission.

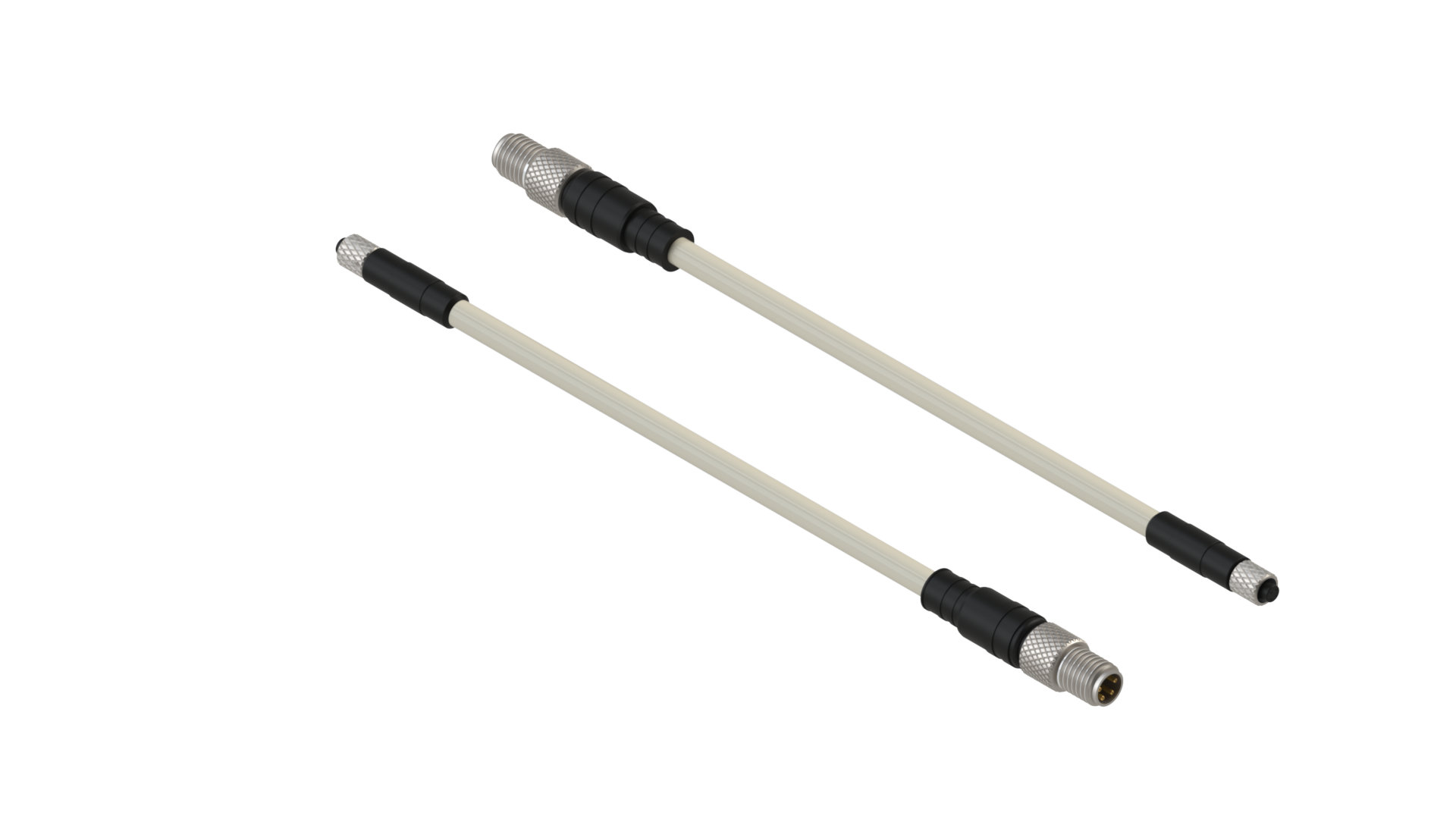

Connection cable for HIRT digital RS485 transducers with an M5 connector for connection to higher-level communication systems via an M8 connector: shielded, suitable for drag-chain applications and with a screw locking mechanism for secure signal transmission.
Compression springs for adjusting the measuring force of probes in the T100, T300, T500 and T800 series. Available in various spring forces to suit the respective series and model.
Individual components for the Tip Holder Set T800. Available as spare and supplementary parts, the components enable flexible and individual configuration of the tip holder.
Tip Holder Set for Block Gauge Transducer T800. The T800 series tip holder sets are available in versions for shaft diameters Ø 4 mm and Ø 6 mm, as well as for horizontal and vertical measuring orientations.
Pneumatic cylinder T800 for block gauges, designed to actuate the measuring transducer using compressed air. It replaces the spring-loaded feed mechanism and enables enables a controlled feed sequence.
Rotating pneumatic nipple for standard HIRT inductive measuring transducers of the P, L and V series, featuring a radial (90°) cable outlet for flexible compressed-air supply and free rotation in dynamic applications.
