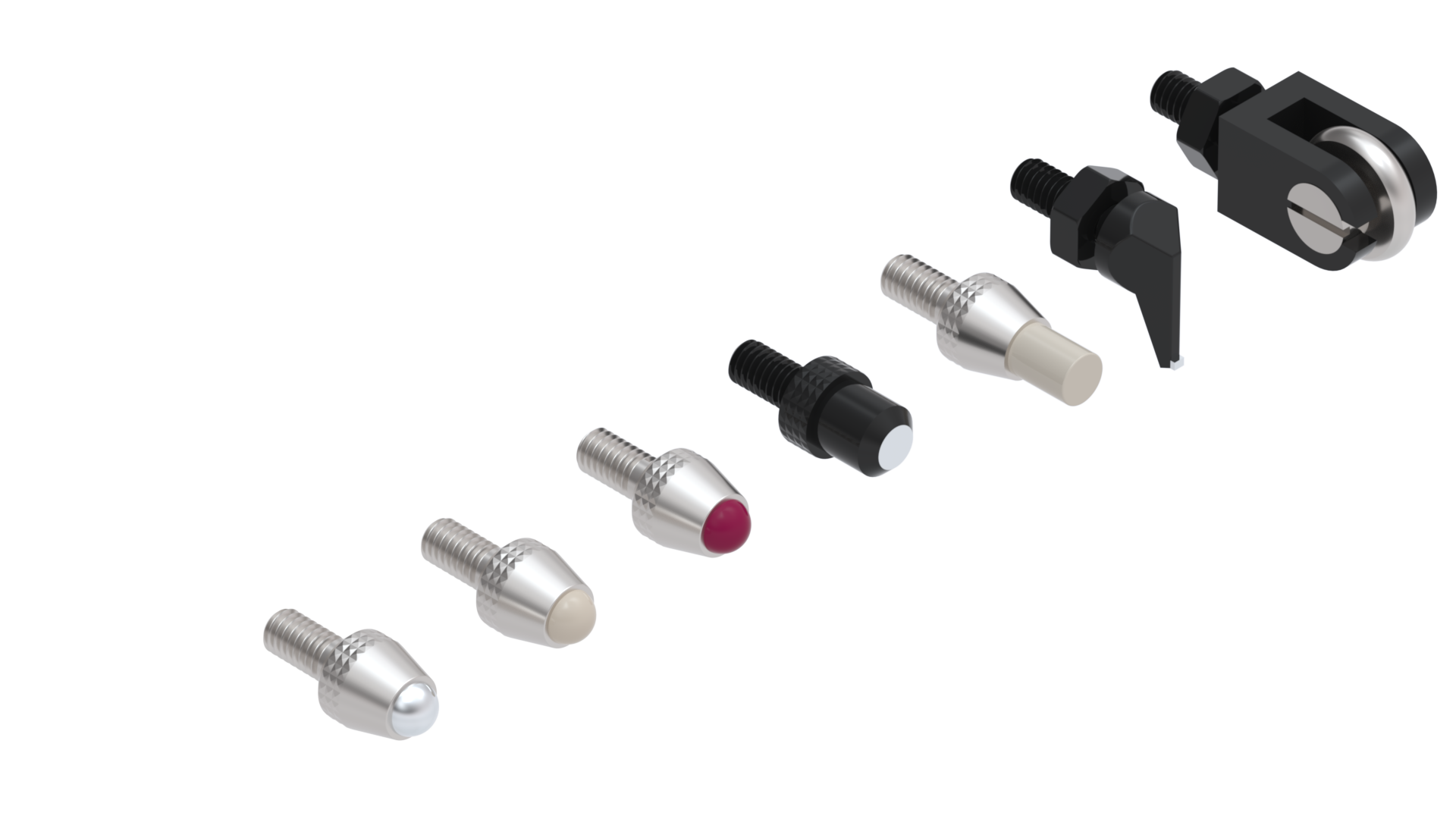

Measuring Inserts M2.5
Measuring inserts with an M2.5 connection thread for precise measurement tasks in industry and quality control. Compatible with standard dial gauges and available in steel, carbide, ruby, PEEK and Teflon. Customised solutions that meet customer requirements, coupled with complementary extensions, provide flexibility – even in challenging measurement tasks.
TN10W
Tip with tungsten carbide ball
Order number: 1003312
TN10-PEEK
Tip with PEEK ball
Order number: 1003313
TN10-RUBIN
Tip with ruby ball
Order number: 1003315
TN10-TEFLON
Tip with Teflon ball
Order number: 1006462
TN10PW
Tip with tungsten carbide ball for Transducer P series
Order number: 1003314
TN200W
Tip with tungsten carbide ball for Transducer T200 series
Order number: 1003835
TN10-PEEK1000
Tip with flat PEEK measuring surface
Order number: 1003691

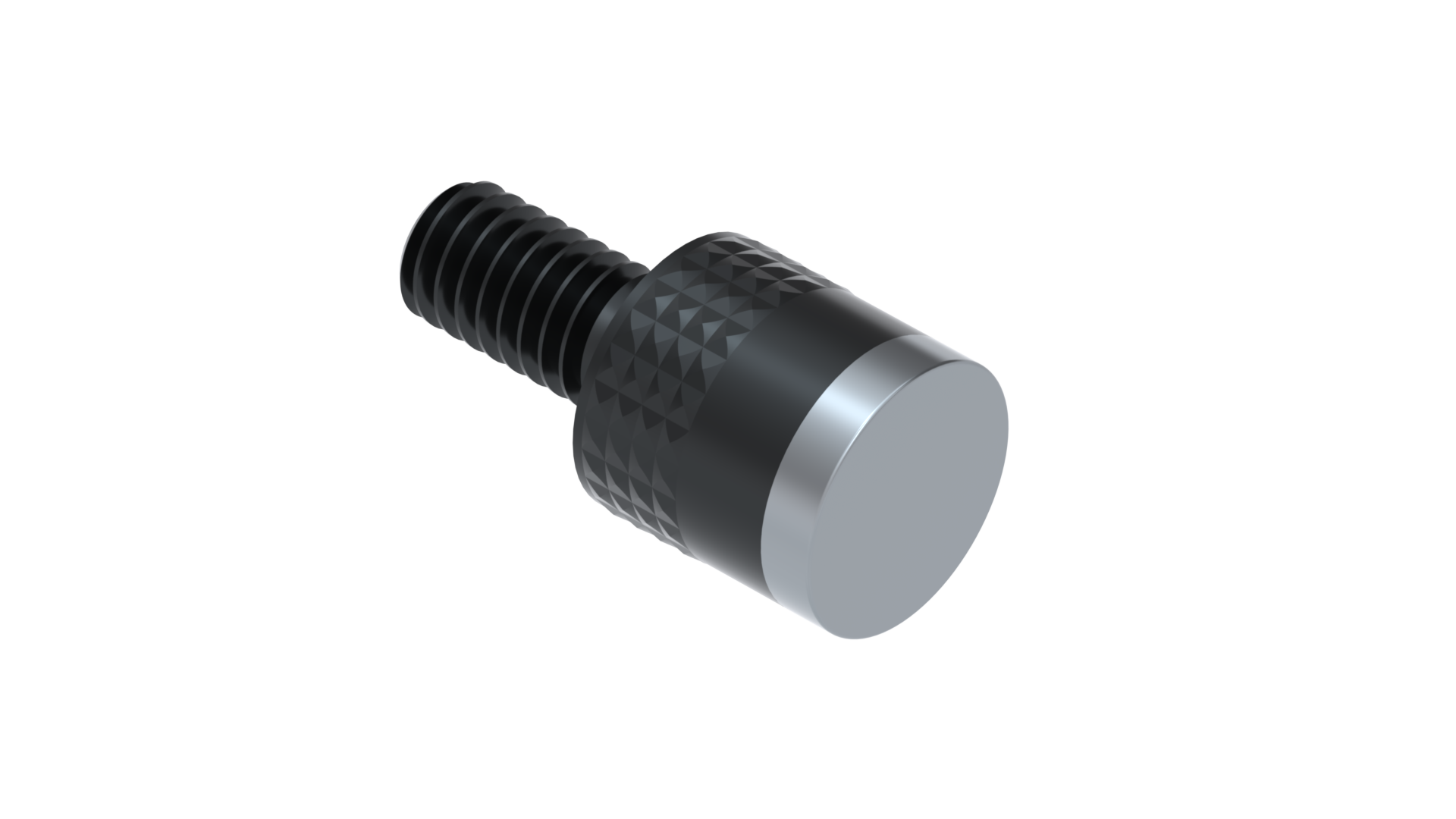

TN2105W
Tip with flat carbide measuring surface
Order number: 1002453
TN11-R15
Tip with steel spherical R15 surface
Order number: 1003317
TN12
Tip with steel pin
Order number: 1002450
TN20
Tip with flat measuring surface laterally offset
Order number: 1002452
TN30W
Tip with cylindrical carbide pin
Order number: 1002454
TN70
Tip cylindrical with flat measuring surface
Order number: 1002456
TN13
Tip with hardened steel roller
Order number: 1002451
TN40W
Tip with tungsten carbide knife-edge
Order number: 1002455

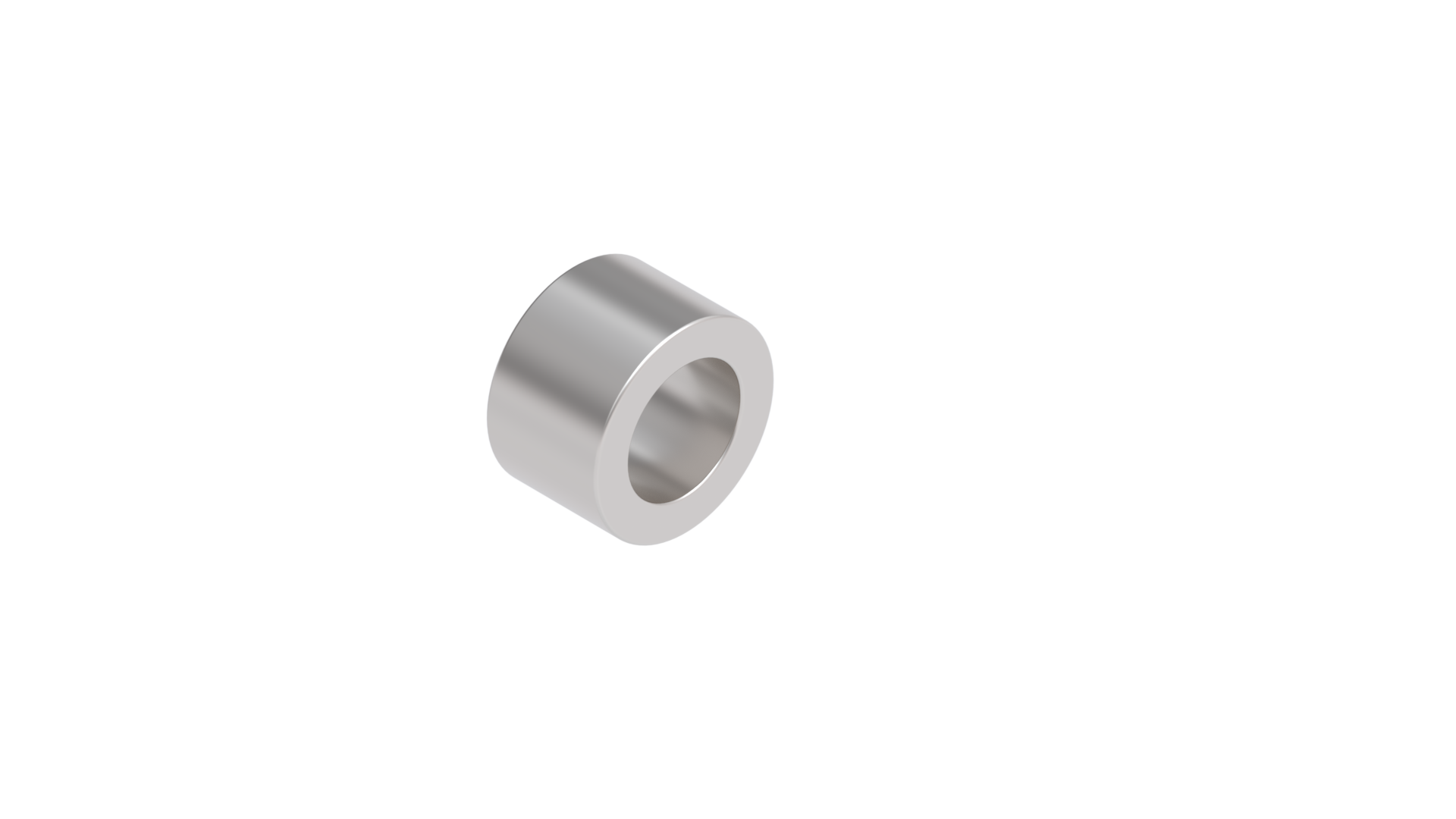

TNP
Tip extension for P series Transducers
Order number: 1003316
