HIRT offers a wide range of precision transducers for various measurement and assembly requirements. The probes are available with measuring strokes of ±1 mm, ±2 mm and ±5 mm and come in variants such as spring-return (F), vacuum lift (V), pneumatic return (P) and pneumatic return with air gap seal (L). Depending on the version, they feature axial or radial cable outlets and are equipped with half-bridge or full-bridge coil systems, compatible with TESA®, Marposs®, Mahr® and LVDT full-bridge systems. All variants are also available as digital probes with IO-Link or RS485 interface. The HIRT transducer range is complemented by the T-Pluggable, T-Miniature and Pig-Tail series, which are designed for ergonomic handling.
HIRT Analog measurement transducers with half-bridge or full-bridge coil systems, compatible with TESA®, Marposs®, and Mahr® systems, as well as LVDT full-bridge systems, are available from the T070, T100, T200, T300, T400, T500, 10P, and 1P series.
HIRT Transducer Pluggable for applications using a quick-connect cable, which ensures ergonomic handling and is optimised for the T070, T100, T200, T300 and T500 series. The plug-in design enables quick and easy probe replacement, thereby reducing downtime and simplifying maintenance work.
HIRT digital probes with integrated signal conditioning electronics and digital communication offer a precise and reliable solution for modern measurement tasks. They are available with either IO-Link or RS485 and can be easily integrated into automation and control systems. Digital data transmission and real-time communication increase process reliability and optimize production processes. The standardized IO-Link interface and the flexible RS485 connection enable seamless integration into existing systems and support applications in the Industry 4.0 environment.
HIRT Pig-Tail Transducer with short 200mm cable outlet for ergonomic handling of the tranducer pool of the T070, T100, T500 series.
HIRT Transducer Miniature in ultra-compact design for measuring applications in the tightest space, from the former Machsize and Nairda product group family in the 10P0, 10P1 and 1P0 series.
HIRT bore measuring transducers from the BMT200 and BMT500 series offer high-precision measurement solutions for bores and limited installation space. installation spaces. The repeatability of 0.050 µm and a linearity deviation of max. 1% of the measuring range ensure reliable measurement results. The compact design allows integration into bore gauges, measuring fixtures and automated inspection systems for internal diameter as well as form and position tolerances.
HIRT DC-Transducer as a complete measurement system, consisting of a HIRT standard transducer and signal conditioning electronics in a cable box, with an optional configurable DC output signal for flexible adaptation to measurement requirements.

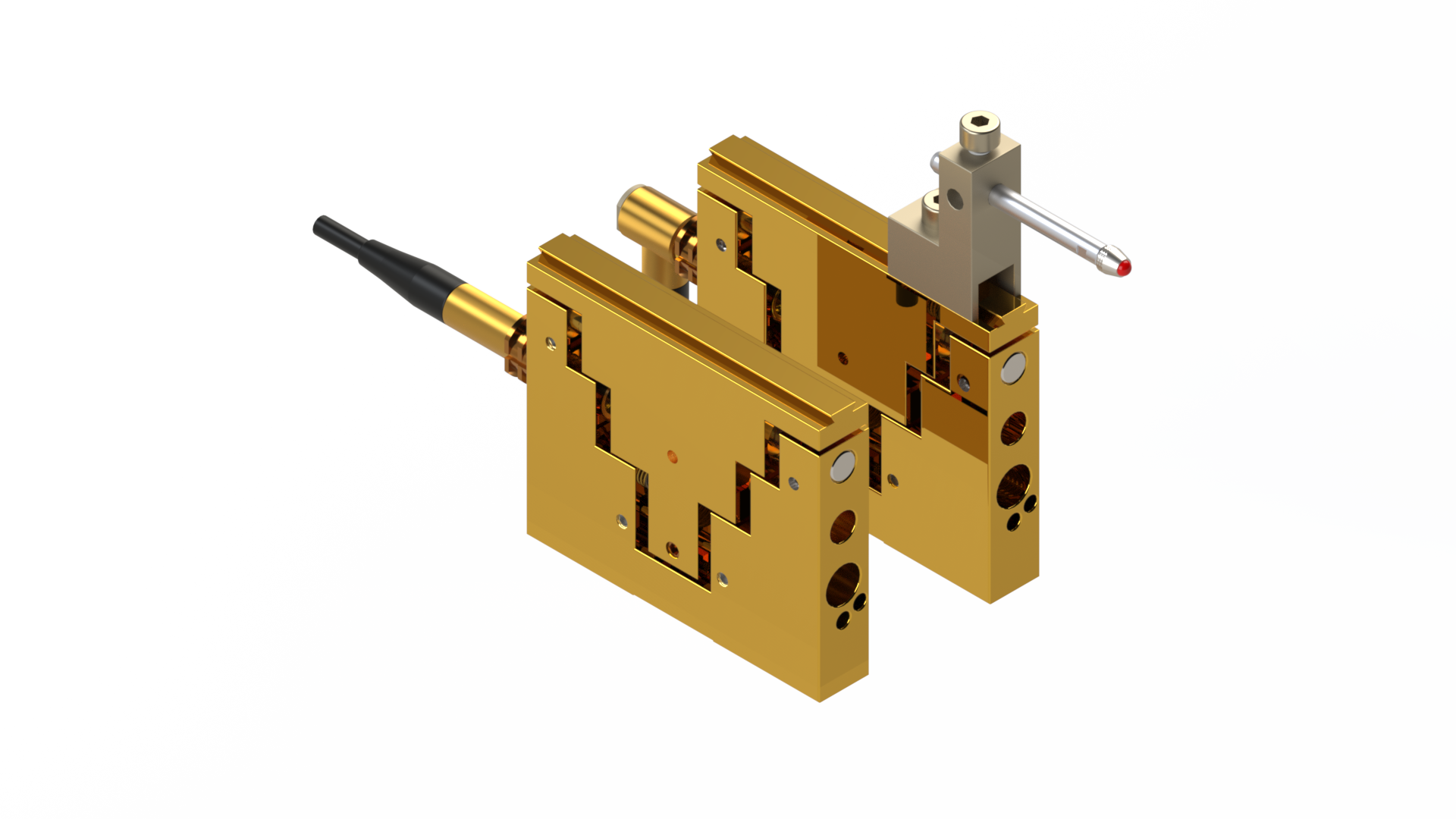

HIRT block gauge transducers enable precise measurements in hard-to-reach areas and are ideal for applications with restricted access to measurement points, where the use of axial probes is not possible or only possible to a limited extent. In combination with tip holders from the T800 series, tips and tip holder extensions can be flexibly mounted and adapted to different measurement directions and requirements. The HIRT linear ball bearing used, enables precise and free-of-play linear motion and ensures high repeatability and reliable measurement results.
