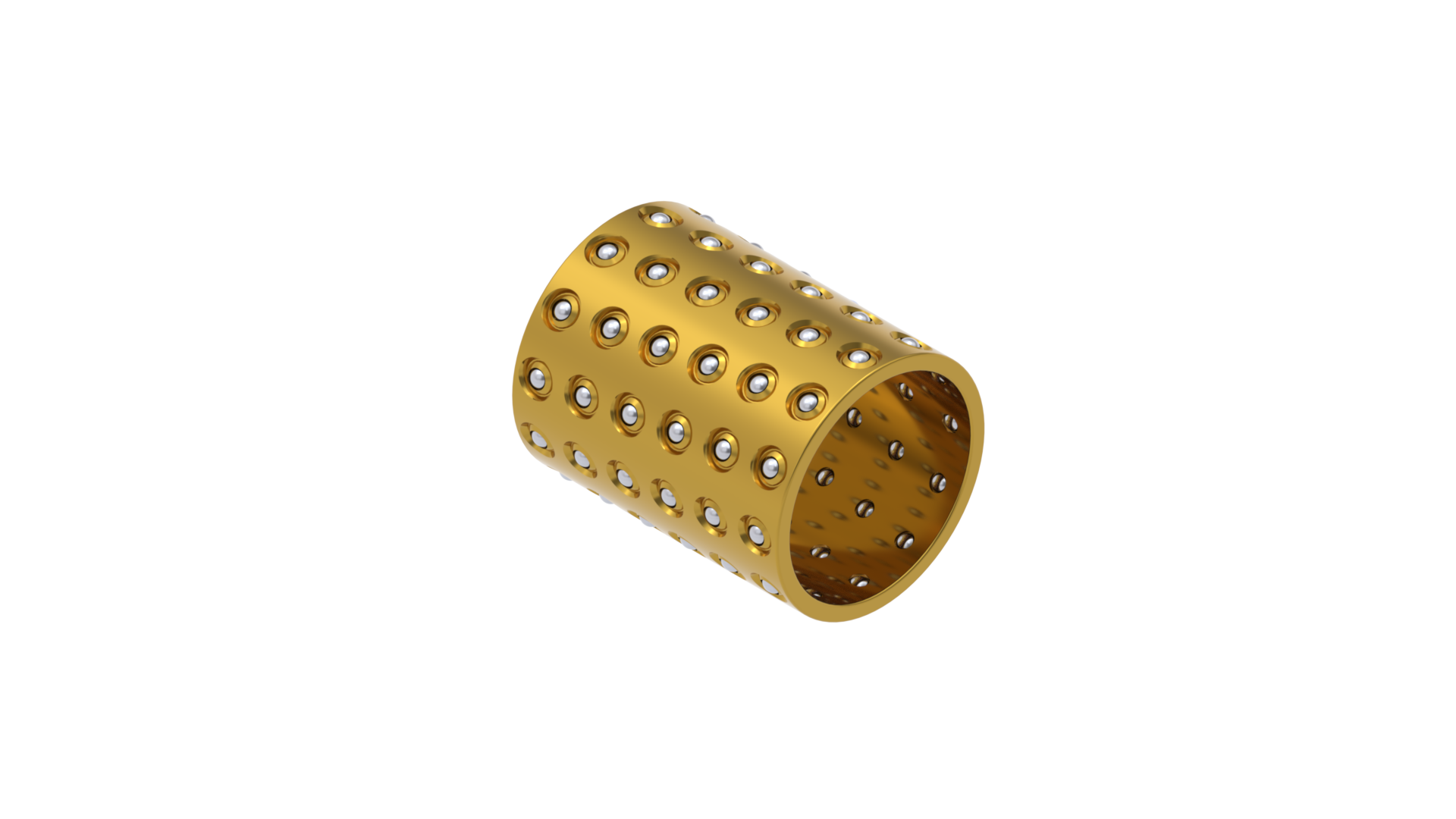

K1012015
Properties
Mechanical Specifications and Material
| Shaft Ø | 10 mm |
| Housing Ø | 12 mm |
| Balls Ø | 1.00 mm |
| Length cage | 15 mm |
| Material tube | Brass |
| Material balls | SAE 52100 |
| Tolerance balls | AFBMA Grade 10 or better |
| No. balls | 72 |
| Column load Co | 50 N |
| Total load C10 | 42 N |
| Optional material tube | Aluminium |
| Optional marerial balls | stainless steel AISI 440C |
