K1014030
Properties
Mechanical Specifications and Material
| Shaft Ø | 10 mm |
| Housing Ø | 14 mm |
| Balls Ø | 2.00 mm |
| Length cage | 30 mm |
| Material tube | Brass |
| Material balls | SAE 52100 |
| Tolerance balls | AFBMA Grade 10 or better |
| No. balls | 84 |
| Column load Co | 236 N |
| Total load C10 | 94 N |
| Optional material tube | Aluminium |
| Optional marerial balls | stainless steel AISI 440C |
Related Products
Guide shafts

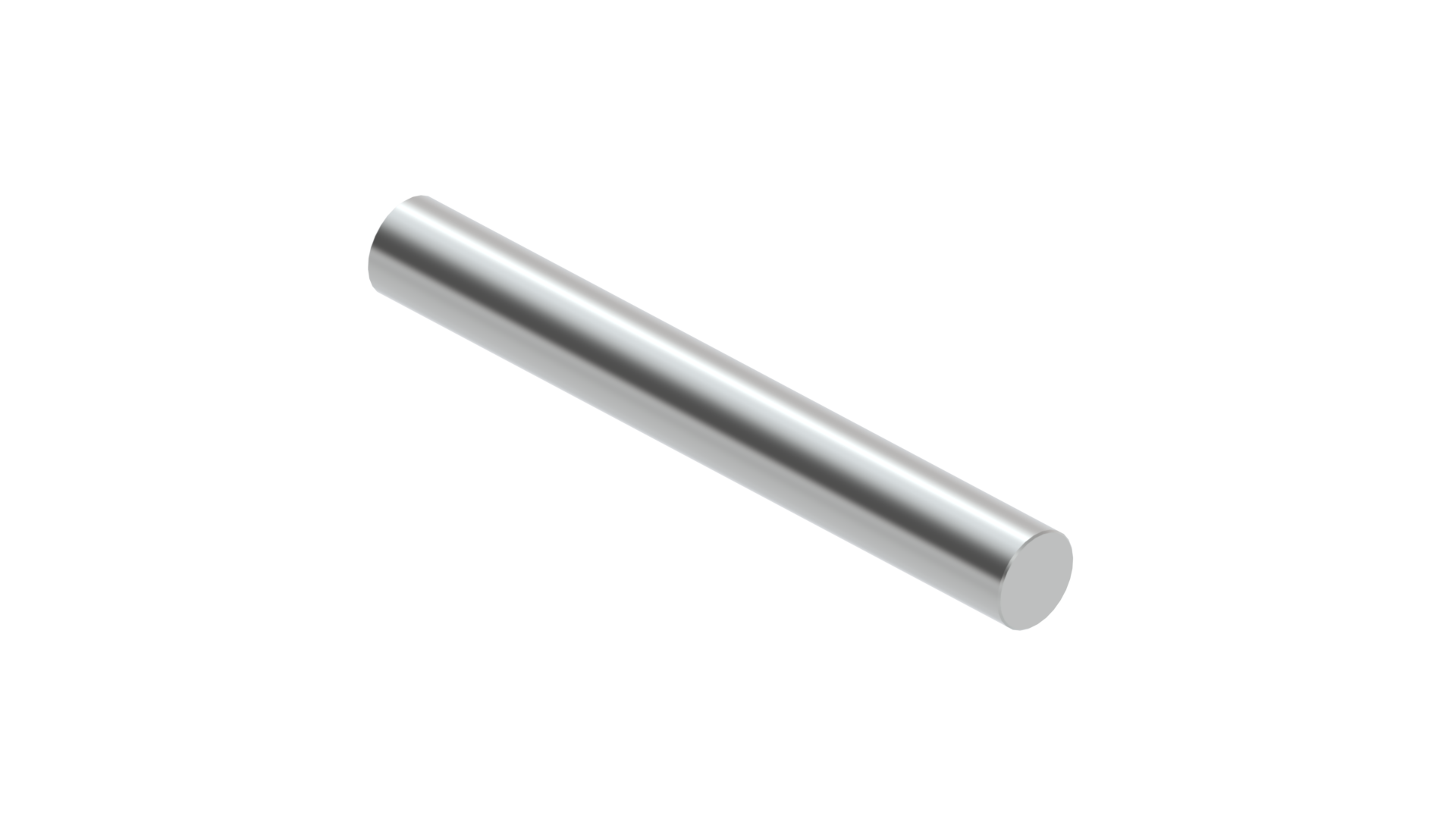

W10080
Precision shaft 10x80 mm
Order number: 1002693

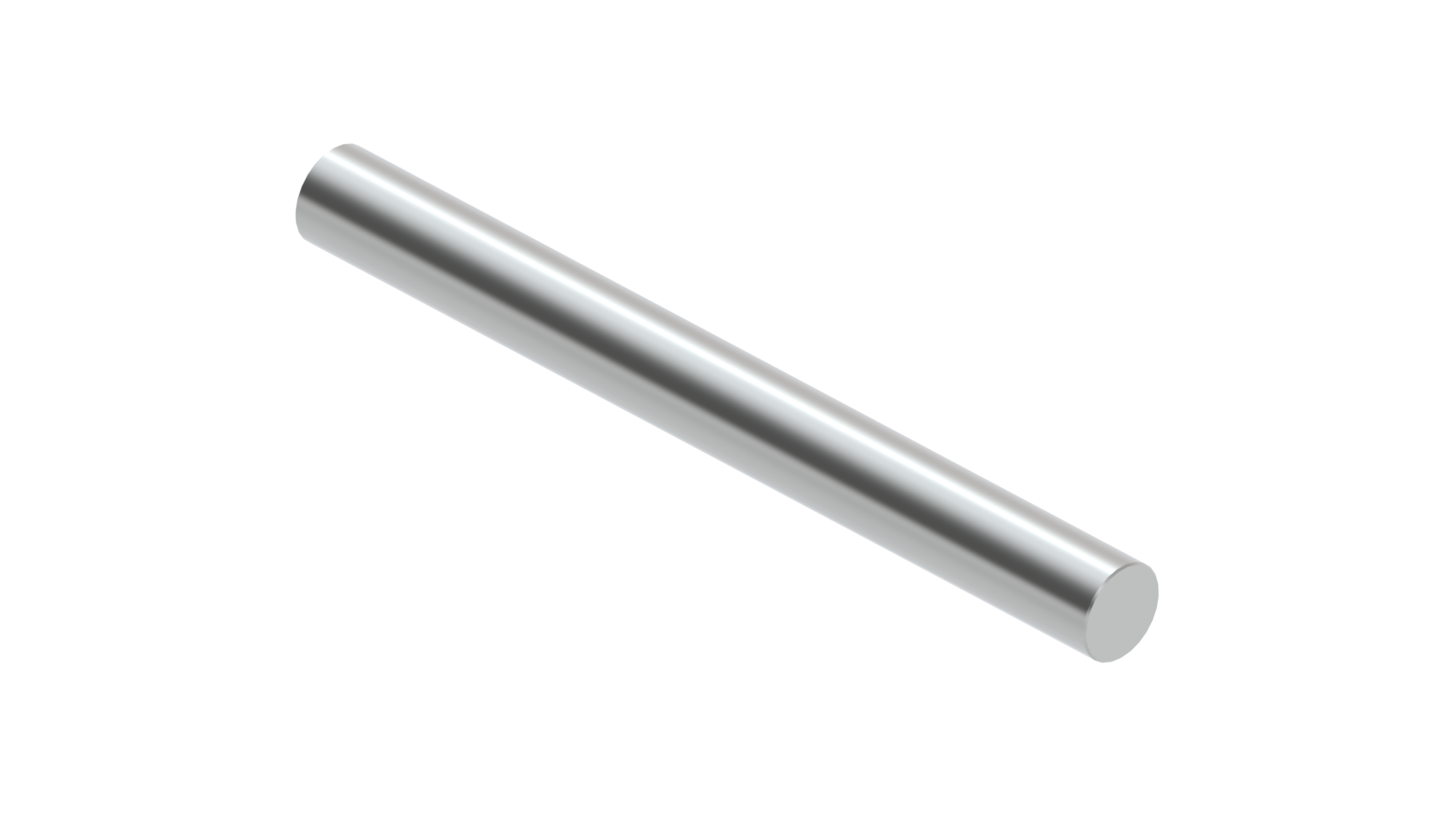

W10100
Precision shaft 10x100 mm
Order number: 1002694

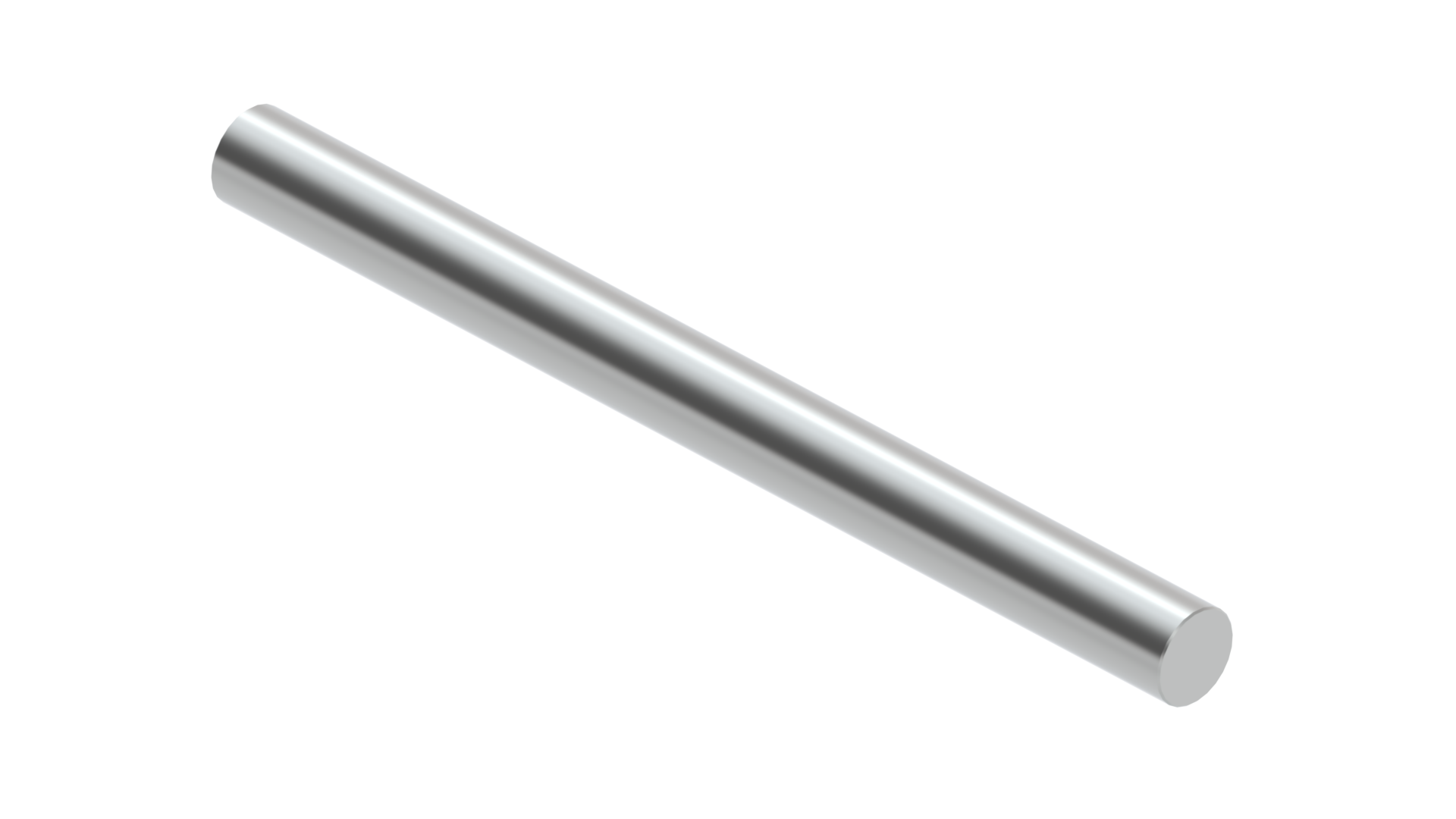

W10120
Precision shaft 10x120 mm
Order number: 1002695

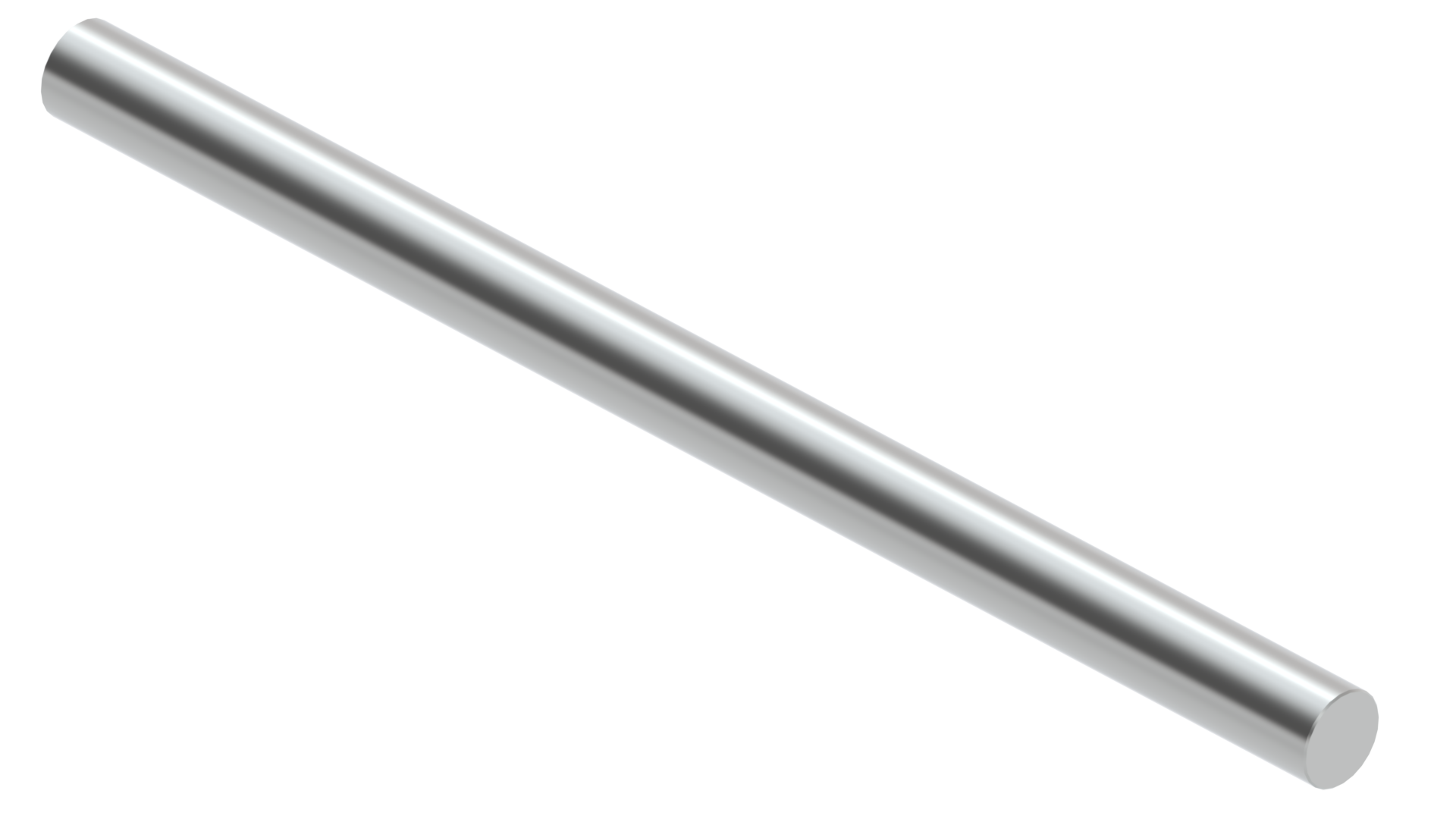

W10160
