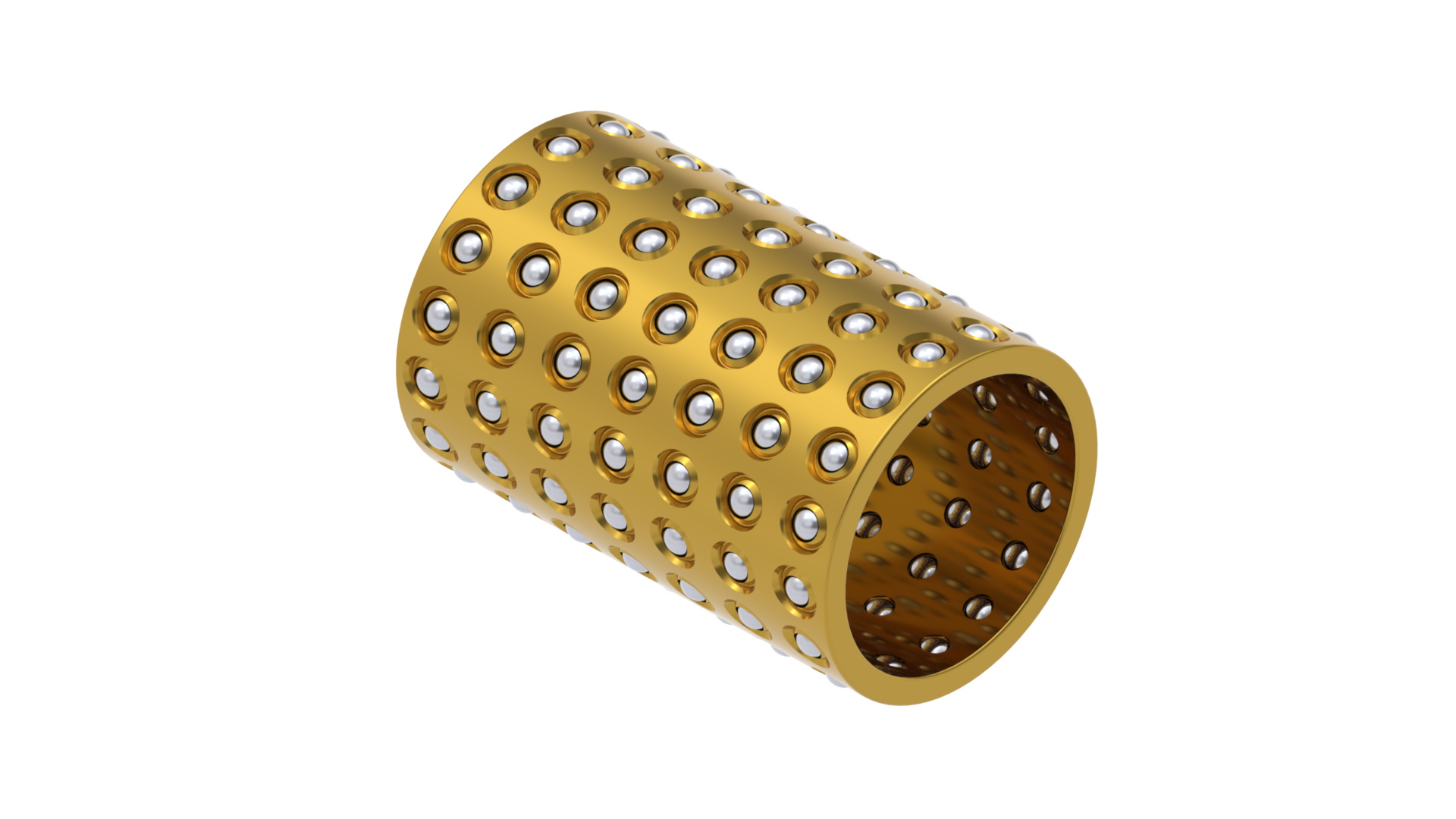

K1620030
Properties
Mechanical Specifications and Material
| Shaft Ø | 16 mm |
| Housing Ø | 20 mm |
| Balls Ø | 2.00 mm |
| Length cage | 30 mm |
| Material tube | Brass |
| Material balls | SAE 52100 |
| Tolerance balls | AFBMA Grade 10 or better |
| No. balls | 112 |
| Column load Co | 290 N |
| Total load C10 | 115 N |
| Optional material tube | Aluminium |
| Optional marerial balls | stainless steel AISI 440C |
